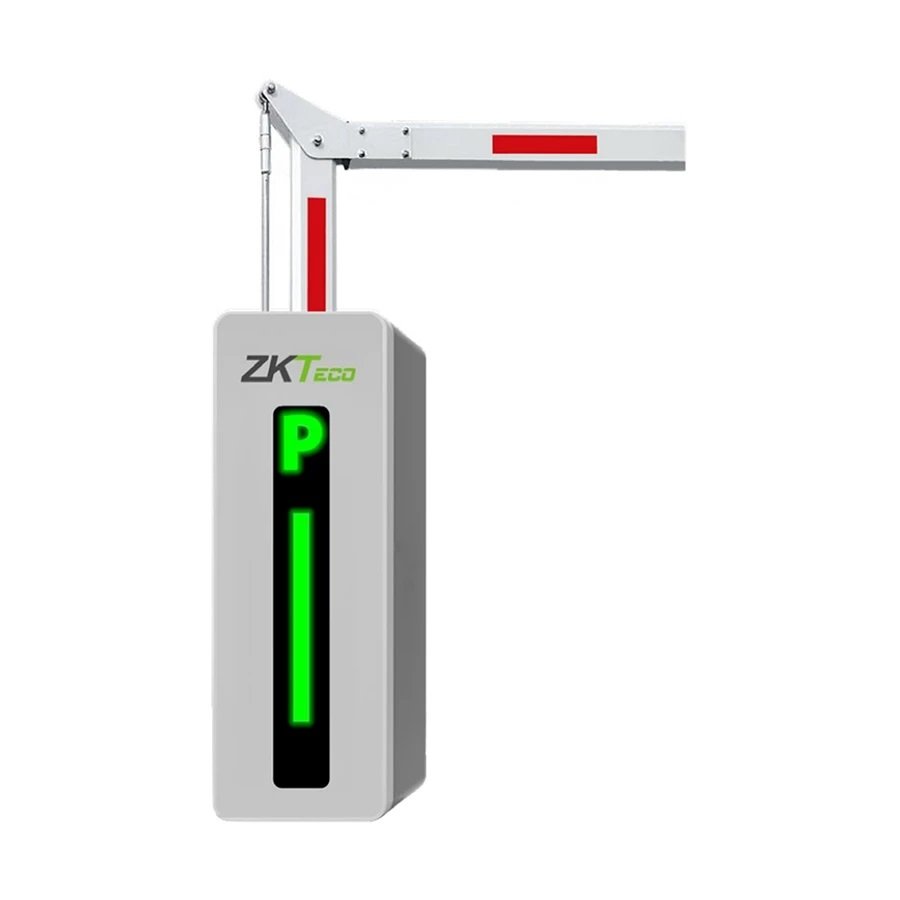

ZKTeco BG1030L Parking Barrier

BG1000 series barrier gate is a high-performance barrier gate that adopts ZKTeco s interactive LED chassis design. It controls the flow of traffic in and out of the premises providing maximum security at a low cost. It adopts ARM7 embedded system control core, brushless DC motor, and SCM421 material gear transmission structure to offer maximum efficiency.

It has the advantages of high speed, efficiency, stable quality, user-friendly customization, comprehensive performance, and so on. It can be used in real-time application areas such as offices, hospitals, public places, residential areas to ease traffic issues.

Features and Functionalities

• The operating speed is 1.5s, and the speed can be adjusted according to different
• boom arm lengths.
• Reversible left and right directions.
• The transmission mechanism is simple, compact, and easy to install on-site.
• Interactive and stylish chassis LED design.
• Equipped with digital control monitoring, thus supports delay in automatic close,
• automatic test, rise/fall output status display.
• Supports automatic power-off, a manual rise of the boom arm, anti-smash, and fire linkage functions.
• The angle of rising/fall of the arm can be adjusted, and the digital encoder is adopted to
• limit the position automatically, thus replacing the traditional limiting procedure. The position control is accurate.
• 24V backup battery can be used to ensure the normal operation of the barrier when power is off.
• The chassis is made of a 2.0mm metal sheet through an electrophoretic and powder spraying process.
• The boom will bounce back when it is blocked.
