Security Surveillance Dahua XVR5116HS-4KL 16 Channel Penta-brid XVR

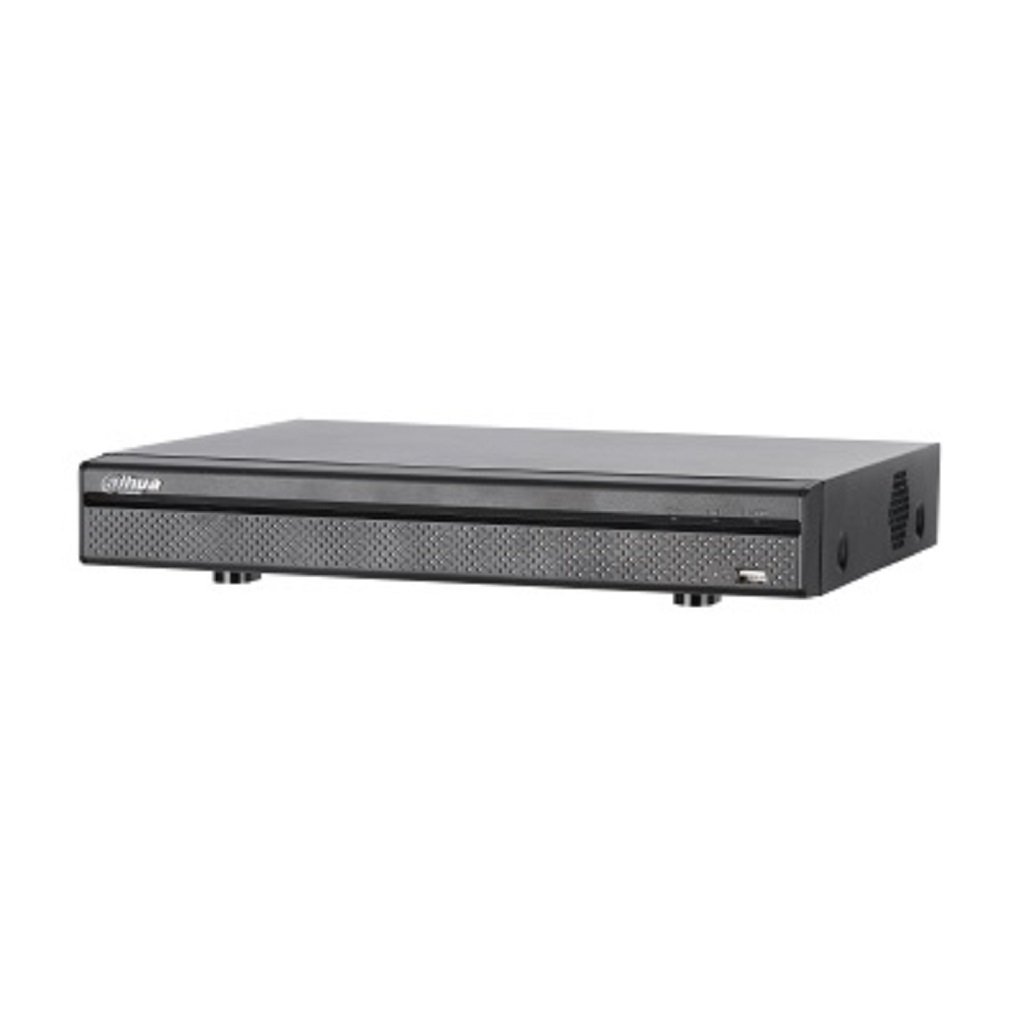

Dahua XVR5116HS-4KL 16 Channel Penta-brid XVR

Price	0 ৳
Status	In stock
Product Code	PR00095
Brand	Dahua
Model	XVR5116HS-4KL

Features

Model: Dahua XVR5116HS-4KL
Each channel up to 8MP
Max 12 channels IP camera inputs
Max 48Mbps Incoming Bandwidth
Smart Search and Intelligent Video System

Hotline: 01979234344 | Corporate: 01979234319

No Brochure

Share On :

Description

Last Modified On: 18-07-2023

Dahua XVR5116HS-4KL 16 Channel Penta-brid XVR. With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).

Digi-Mark Solution authorized dealer of Dahua in Bangladesh. You can buy the Dahua XVR5116HS-4KL 16 Channel XVR at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

General Informations

System
Main Processor																		Embedded Processor
Operating System																		Embedded LINUX
Video and Audio
Analog Camera Input																		16 Channel, BNC
HDCVI Camera																		1080P@25/30fps, 720P@25/30fps
AHD Camera																		1080P@25/30, 720P@25/30fps
TVI Camera																		1080P@25/30, 720P@25/30fps
CVBS Camera																		PAL/NTSC
IP Camera Input																		16+8 Channel, each channel up to 8MP
Audio In/Out																		1/1, RCA
Two-way Talk																		Reuse audio in/out, RCA
Recording
Video Compression																		H.265+/H.265/H.264+/H.264
Resolution																		4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate																		Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-/ 1080P/ 720P/ 960H/ D1/ CIF(1~25/30fps) Sub stream:960H(1~15fps); D1/ CIF(1~25/ 30fps)
Video Bit Rate																		32Kbps ~ 4096Kbps Per Channel
Record Mode																		Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval																		1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression																		AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate																		8KHz, 16 bit Per Channel
Audio Bit Rate																		64Kbps Per Channel
Display
Interface																		1 HDMI ,1 VGA
Resolution																		1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display																		When IP extension mode not enabled: 16CH: 1/4/8/9/16 When IP extension mode enabled: 16CH: 1/4/8/9/16/25
OSD																		Camera title, Time, Video loss, Camera lock, Motion detection, Recording
