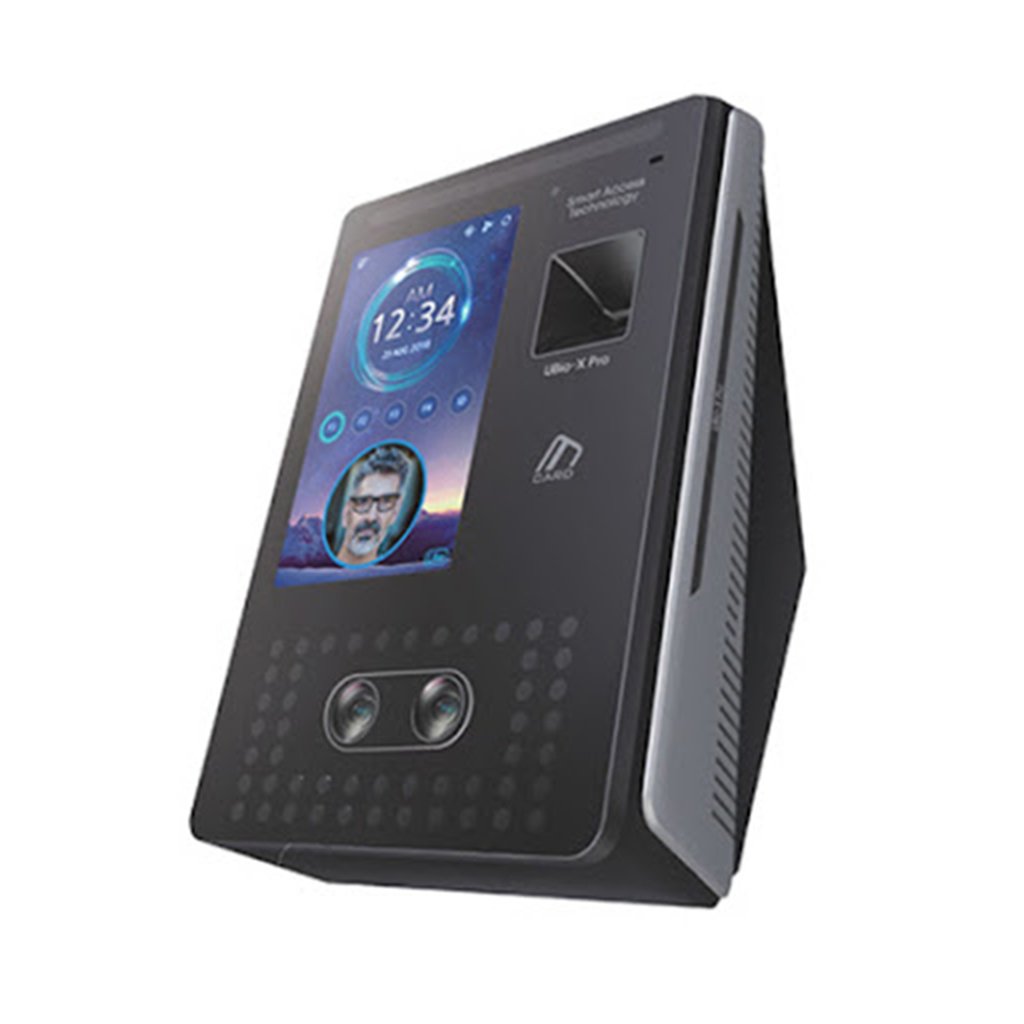

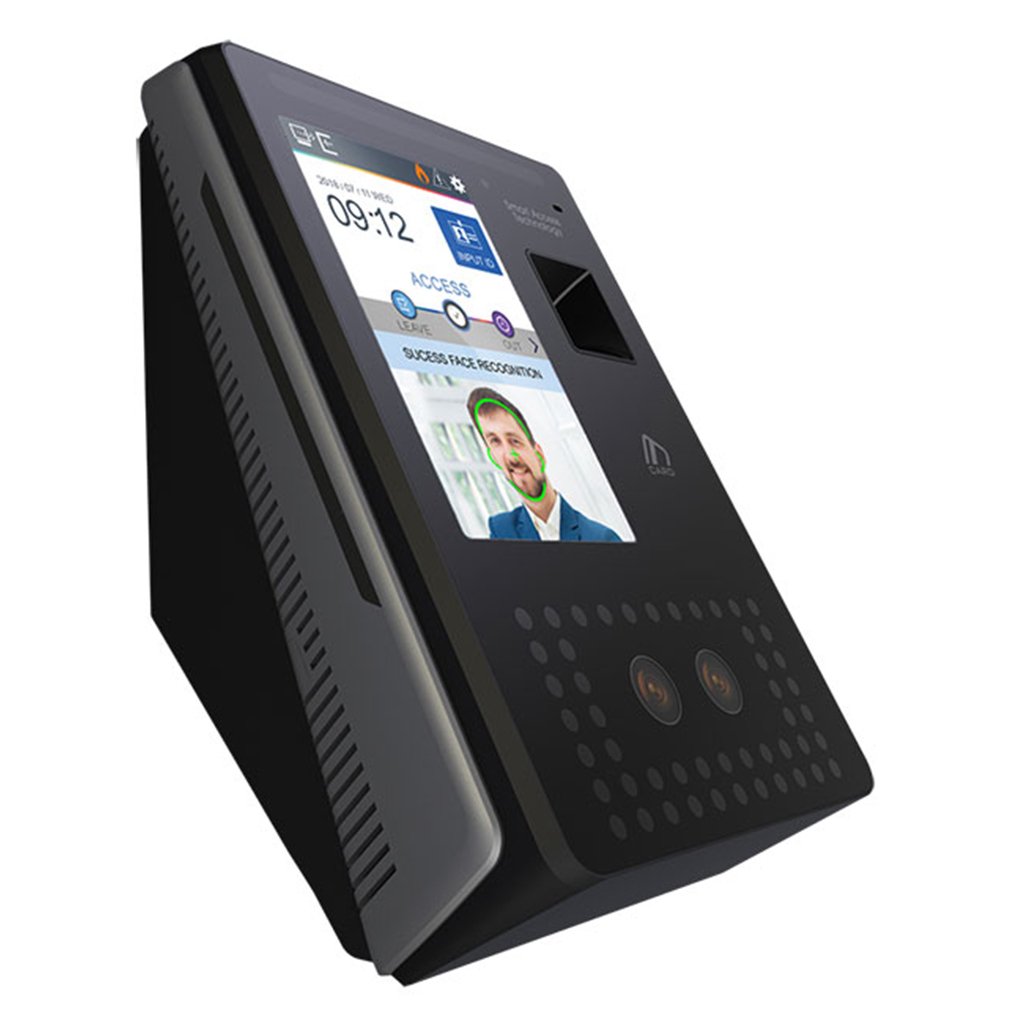

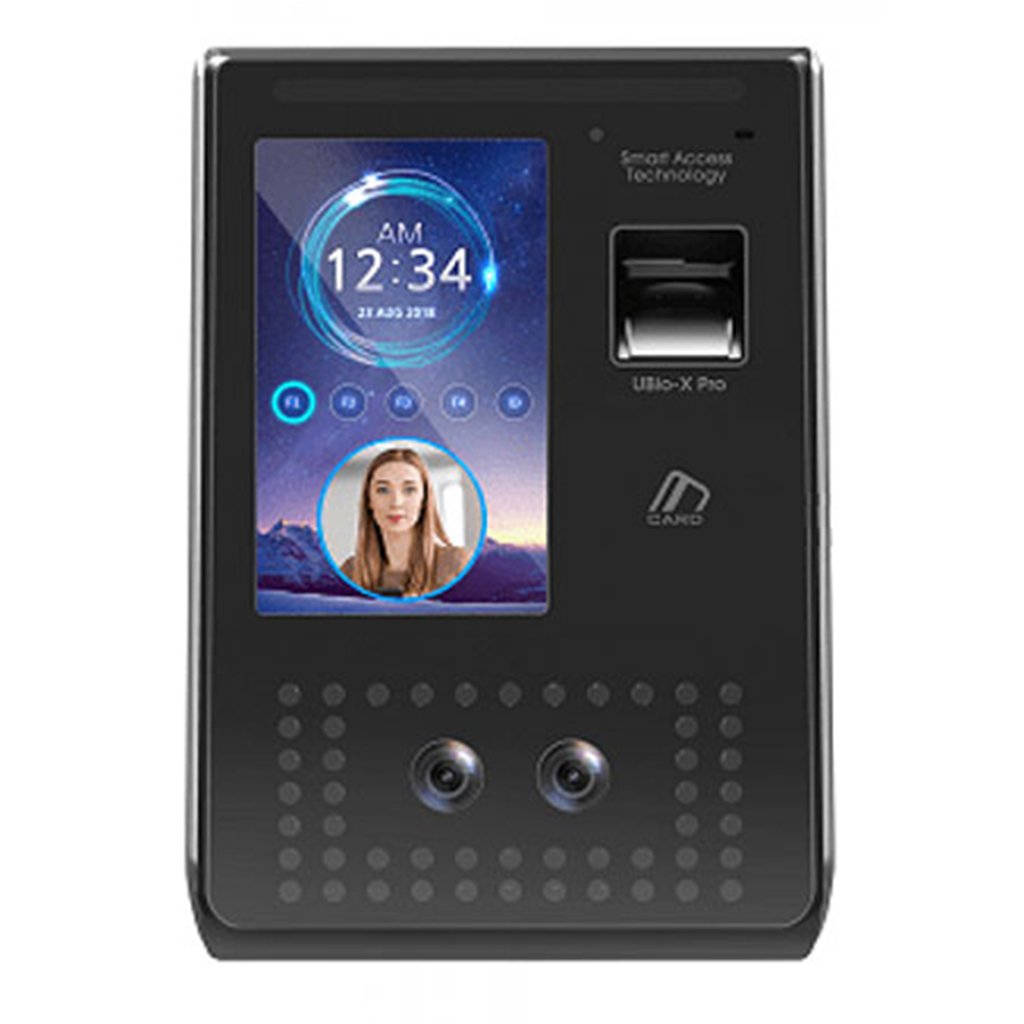

VIRDI UBio

Share On :

General Informations

Authentication Method				Biometric
Dust/ Water Resistance				X
Memory	Max Users	card	(1:1) / (1:N)	500,000
		Fingerprint	1:01	500,000
		(Base on one finger
		enrollment per user)	1:N	100,000
		Face	1:01	100,000
		(Base on five Face
		enrollment per user)	1:N	7,000
		Iris	1:01	X
		(Base on 2 eyes (L/R)
		enrollment per user)	1:N	X
	Templates	Fingerprint	1:01	1,000,000
			1:N	200,000
			MAX Templates per Finger	2
			MAX Finger per User	10
		Face	1:01	500,000
			1:N	35,000
			MAX Templates per Finger	10
		Iris	1:01	X
			1:N	X
			MAX Templates per Eyes	X
			MAX Templates per User	X
	Logs			10,000,000
	Images			20,000
Communication	with server			TCP/IP
	other			SD Card
	Wireless LAN(Wi-Fi)			Optional
	Wiegand OUT			O
	RS232			O
	RS485			O
	Wiegand IN			O
Display	LCD			5”Color Touch
	Backlight			0
Embedded Camera				Dual
Card	125khz-EM			O
	HID Prox			O
	HID iclass			O
	13.56MHz Smart Card			O
Keypad				Touch Screen
Function keys				SOFT
Door Phone				–
FP Sensor (Platen Area)				15.5 X 19 mm
Resolution				500dpi
Dimension	(W) X (H) X (D) mm			149.7 x 208 x 89.7mm
FRR /FAR				0.1% / 0.0001%
Operating Temperature				-20 ~ 60℃
Opertating Software (Server solution)				UBio Alpeta
