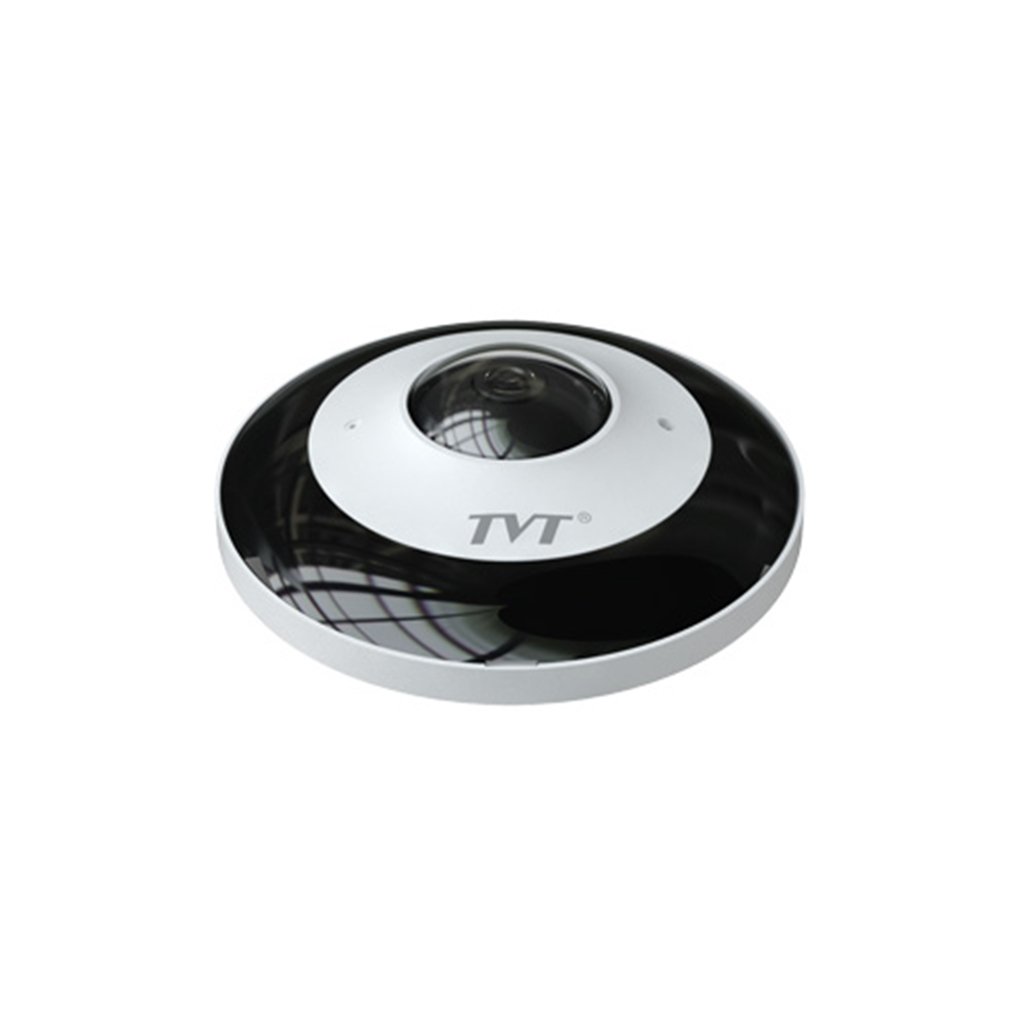

Security Surveillance TVT TD-9568E2L (D/PE/AR2) 6MP Network IR Fisheye Camera
TVT TD-9568E2L (D/PE/AR2) 6MP Network IR Fisheye Camera
TVT TD-9568E2L (D/PE/AR2) 6MP Network IR Fisheye Camera

TVT TD-9568E2L (D/PE/AR2) 6MP Network IR Fisheye Camera

not inserted
Price 0
Status In stock
Product Code PR00384
Brand TVT
Model TD-9568E2L
Features

    • 6MP H.265 full real time coding
    • Effective pixels: 2160 × 2160
    • ICR auto switch, true day / night
    • 20 ~ 30m IR night view distance

Hotline: 01979234344 | Corporate: 01979234319
Download Brochure
Share On :
Last Modified On: 25-09-2023

TVT TD-9568E2L (D/PE/AR2) 6MP Fisheye Camera

TVT TD-9568E2L (D/PE/AR2) 6MP Network IR Fisheye Camera, a cutting-edge surveillance solution that redefines the way you capture and monitor your surroundings. This high-performance camera boasts a 6MP progressive scan CMOS image sensor, ensuring crystal-clear visuals with a resolution of 2160x2160 pixels. Its electronic shutter ranges from 1/25s to an impressive 1/100000s, providing exceptional adaptability to different lighting conditions. Equipped with a DC Iris, the TD-9568E2L allows precise control over the aperture, ensuring optimal image quality. Even in challenging low-light scenarios, this camera shines, boasting a minimum illumination of 0.068lux at F2.0 with AGC ON, and it can operate at zero lux with the assistance of infrared (IR) technology. The 1.07mm lens with an aperture of F2.5 provides a remarkable horizontal field of view of 180 degrees for wall mounting and an impressive 360-degree coverage for ceiling mounting, ensuring no blind spots in your surveillance area. This camera excels in day and night monitoring, thanks to its ICR (Infrared Cut Filter) technology. Whether it's the brightest day or the darkest night, the TD-9568E2L delivers sharp and detailed images. Additionally, it features digital Wide Dynamic Range (WDR), Backlight Compensation (BLC), and Highlight Compensation (HLC) for enhanced image quality in challenging lighting conditions. With 3D Digital Noise Reduction (DNR) and Slow Shutter capabilities, this camera ensures that your footage remains clear and free from unwanted artifacts, even in low-light environments. When it comes to installation and power options, the TD-9568E2L is highly versatile. It can be powered by DC12V or through Power over Ethernet (PoE), making it easy to integrate into your existing network infrastructure. With a power consumption of less than 12W, it's an energy-efficient choice for your surveillance needs. The camera is built to withstand harsh environments, with an operating temperature range of -30°C to 50°C (-22°F to 140°F) and a humidity tolerance of up to 95% non-condensing. Compact and lightweight, with dimensions of Φ130 × 41mm and a net weight of approximately 0.45KG, the TD-9568E2L is unobtrusive and easy to install. Whether you choose to mount it on the ceiling or wall, this camera seamlessly blends into its surroundings.

Digi-Mark Solution authorized dealer of TVT in Bangladesh. You can buy the TVT TD-9568E2L at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

Image Sensor 1 / 2.9 "6MP progressive scan CMOS
Resolution 6MP
Image Size  2160×2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type DC Iris
Min. Illumination 0.068lux@F2.0, AGC ON; 0 lux with IR
Lens 1.07mm @F2.5, horizontal field of view: 180° wall mounting)360° (ceiling mounting)
Day & Night ICR
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Digital NR 3D DNR
Slow Shutter Yes
Power Supply DC12V/PoE
Power Consumption < 12W
Operating Environment - 30 °C ~ 50 (-22 Humidity: less than 95 % non condensing °C °F~140°F) ( - )
Dimensions ( mm ) Φ 130 × 41
Weight ( net ) Approx. 0.45KG
Installation Ceiling mounting; Wall mounting
