Access Control and Time Attendance Nexakey NX-280DS 280KG Double Door EM Lock with LED

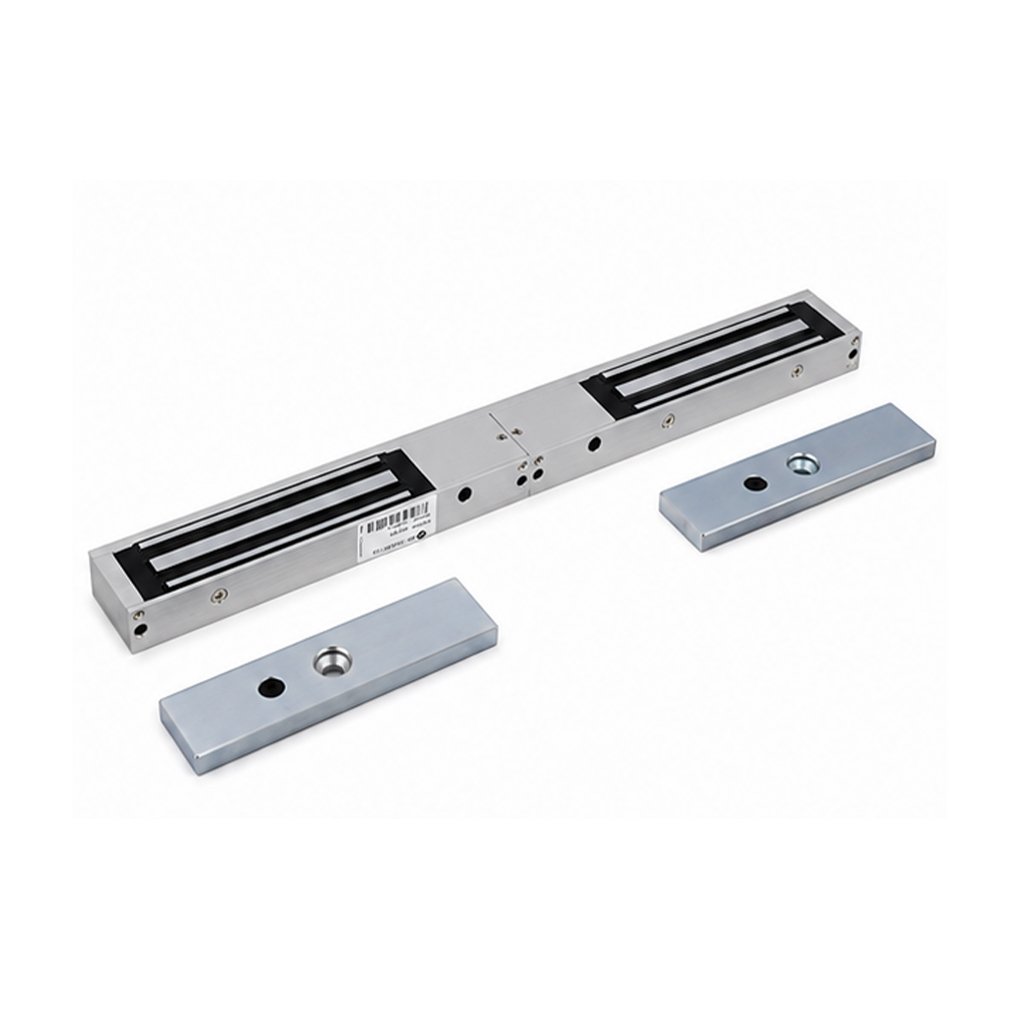

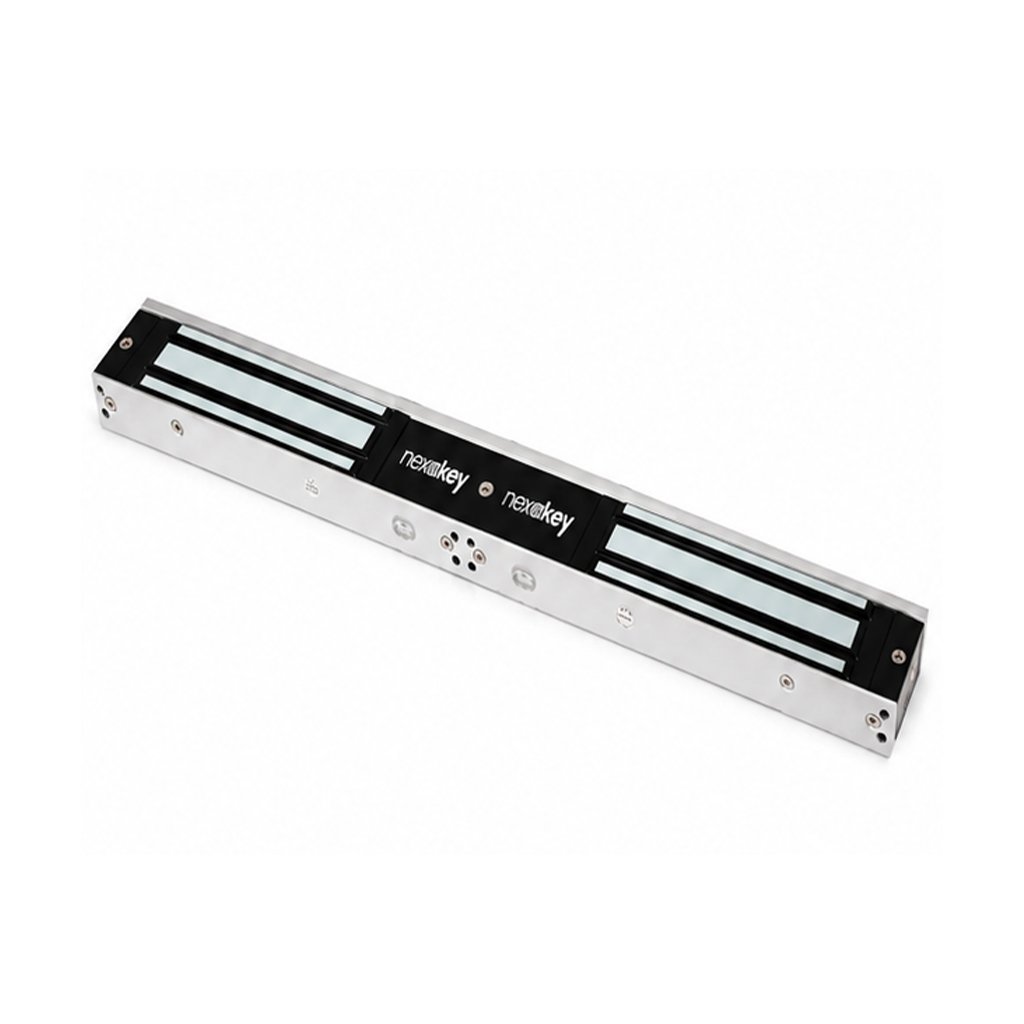

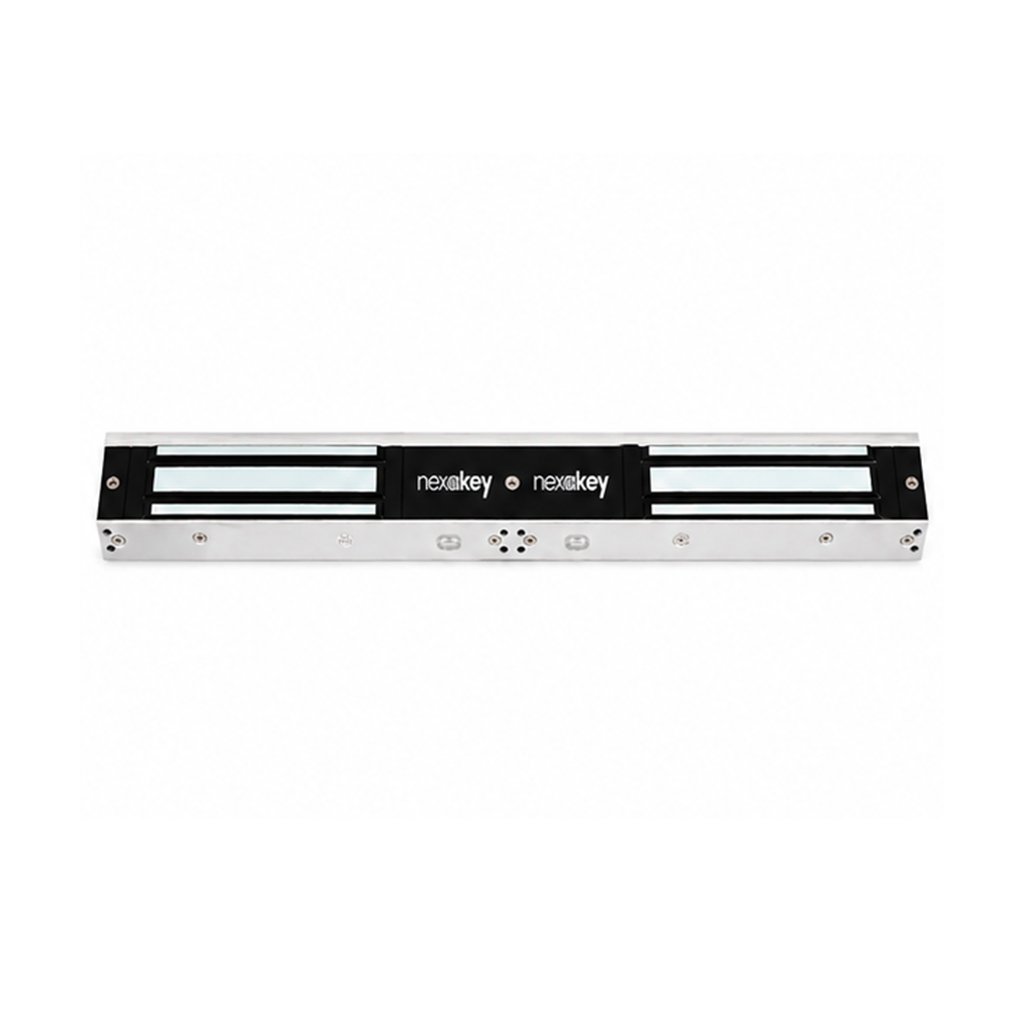

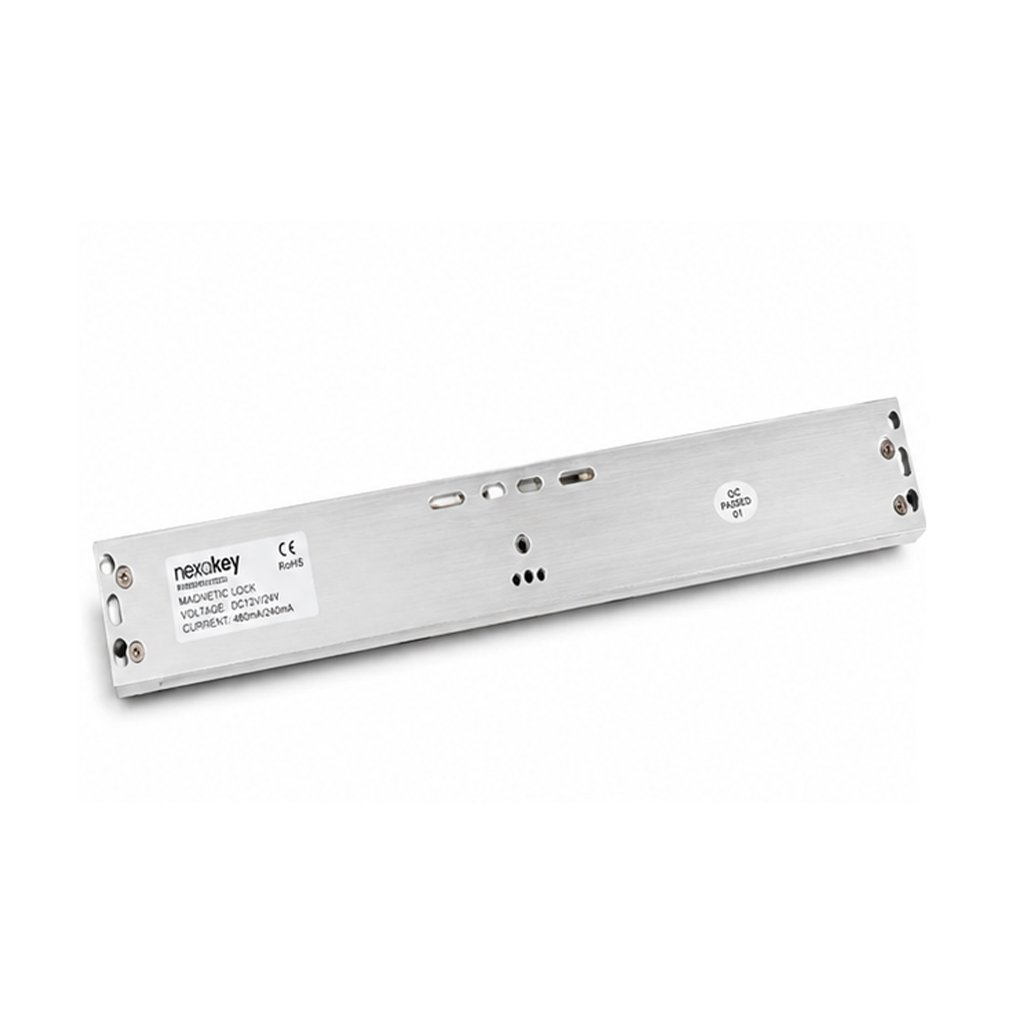

Nexakey NX-280DS 280KG Double Door EM Lock with LED
Nexakey NX-280DS 280KG Double Door EM Lock with LEDNexakey NX-280DS 280KG Double Door EM Lock with LED

Nexakey NX-280DS 280KG Double Door EM Lock with LED

not inserted
Price 0
Status In stock
Product Code PR01322
Brand Nexakey
Model NX-280DS
Features

    • Strong Holding Force: Supports up to 280kg/600lbs*2 for enhanced security.
    • Dual Voltage Options: Operates with either 12V or 24V (selectable).
    • Easy Installation: DIY-friendly circuit board for hassle-free setup.
    • Reverse Current Protection: Equipped with MOV for added safety.

Hotline: 01979234344 | Corporate: 01979234316
No Brochure
Share On :
Last Modified On: 21-12-2024

Nexakey Electromagnetic Lock
The Nexakey Electromagnetic Lock provides a powerful holding force of 280kg/600lbs*2, ensuring superior security. It supports dual voltage (12V/24V optional) and features an easy-to-install circuit board for DIY installation. Equipped with MOV for reverse current protection and anti-residual magnetism design, it guarantees safety and durability. The lock offers fail-safe operation (power off to open), an LED indicator, lock signal output, and a time delay function. Compatible with wooden, metal, glass, and fireproof doors, it is certified by UL, CE, MA, and FCC for trusted performance.

Product Name Nexakey NX-280KG Single Door EM Lock with LED
Lock Size 500L*47W*26H(mm)
Armature Plate Dimension 180L*38W*11H(mm)
Holding Force 280KG(600LBS)*2
Input Voltage DC12V / DC24V
Indicator Red&Green LED
Current 12V/480mA*2(±10%); 24V/240mA*2(±10%)
Suitable Wooden Door, Glass Door, Metal Door, Fireproof Door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~90%(non-condensing)
Unit Weight 4.04KG
