< img height="1" width="1" style="display:none" src="https://www.facebook.com/tr?id=398657075013292&ev=PageView&noscript=1" /> Hikvision DS-2CE70DF0T-MF 2.0MP Dome CC Camera
Security Surveillance Hikvision DS-2CE70DF0T-MF 2.0MP Dome CC Camera

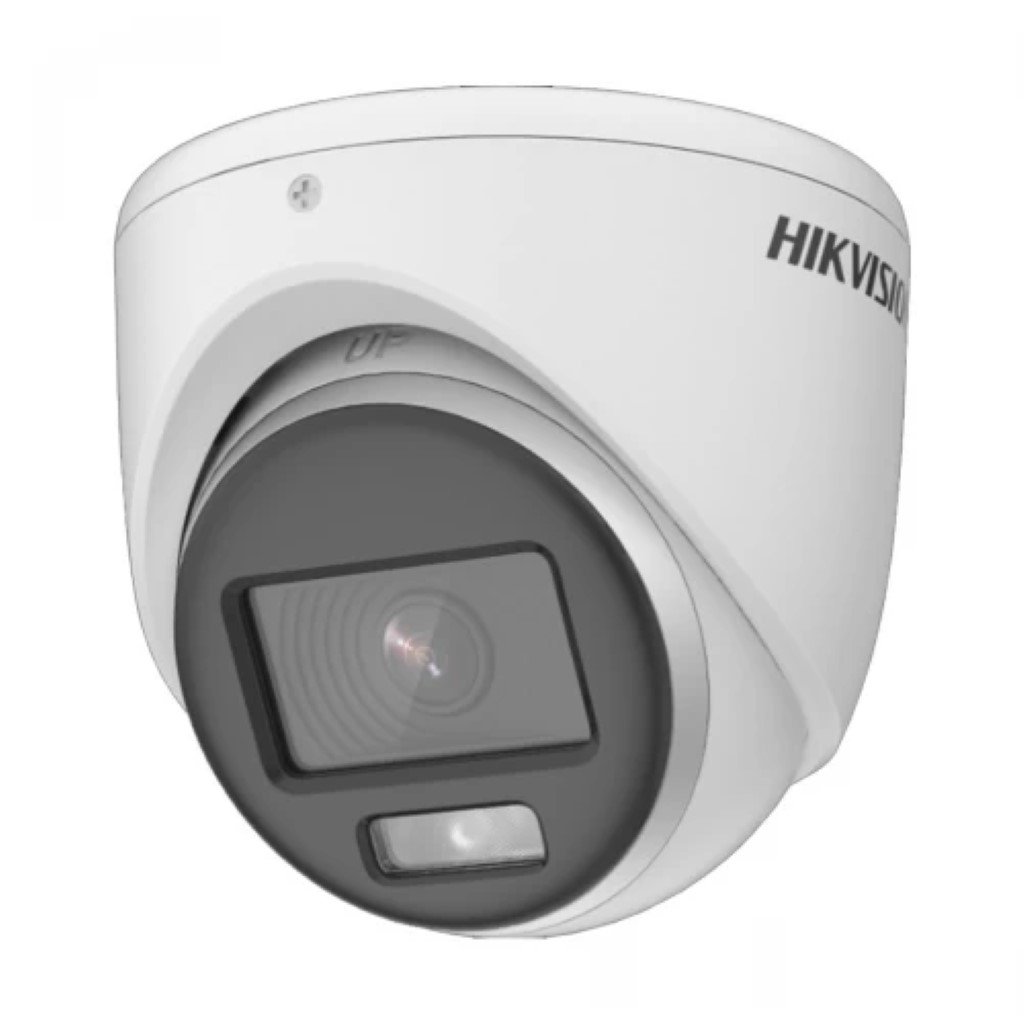

Hikvision DS-2CE70DF0T-MF 2.0MP Dome CC Camera
Hikvision DS-2CE70DF0T-MF 2.0MP Dome CC Camera

Hikvision DS-2CE70DF0T-MF 2.0MP Dome CC Camera

not inserted
Price 0
Status Upcoming
Product Code PR01120
Brand HIKVISION
Model DS-2CE70DF0T-MF
Features

    • High quality imaging with 2 MP, 1920 × 1080 resolution
    • 24/7 color imaging with F1.0 aperture
    • 3D DNR technology delivers clean and sharp images
    • 2.8 mm, 3.6 mm, 6 mmfixed focal lens
    • Up to 20 m white light distance for bright night imaging
    • One port for four switchable signals (TVI/AHD/CVI/CVBS)
    • Water and dust resistant (IP67)

Hotline: 01979234344 | Corporate: 01979234319
Download Brochure
Share On :
Last Modified On: 09-09-2023

Features of Hikvision DS-2CE70DF0T-MF CC Camera In Bangladesh

Brand - Hikvision, Model - Hikvision DS-2CE70DF0T-MF, Usage - Indoor, Type - Dome CC Camera, Form-Factor - Dome, Camera Type - Fixed, Mega Pixel - 2.0MP, Resolution - 1920 x 1080, Max. Camera Resolution - 1920 x 1080, Signal System - PAL/NTSC, Shutter Time - PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s, Lens - 2.8mm, Lens Mount - M12, Lens Adjustment Range - Pan: 0 - 360 degree, Tilt: 0 - 75 degree, Rotation: 0 - 360 degree, Sensor Type - 2MP CMOS Image Sensor, Day & Night - Color, WDR (Wide Dynamic Range) - Digital WDR, AGC - Yes, Video Output - Switchable TVI/AHD/CVI/CVBS, Image Mode - STD/HIGH-SAT/HIGHLIGHT, Noise Reduction - 3D DNR/2D DNR, Visual Alarm - Yes, Weather Proof - IP67, Communication - HIKVISION-C, Power Supply - 12 VDC + - 25%, Power Consumption - 2.4W (Max.), Body Material - Metal, Dimension - 85.1 x 77.62mm, Feature - 24/7 color imaging with F1.0 aperture. 2.8mm fixed focal lens. Water and dust resistant (IP67)., Others - Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light, Light Alarm: Solid Light Alarm (White Light), Focal Length & FOV: 2.8 mm, horizontal FOV: 98 Degree, vertical FOV: 51 Degree, diagonal FOV: 115 Degree, Illuminator: Supplement Light Type: White Light, Supplement Light Range: Up to 20 m, Smart Supplement Light: Yes, Image Settings: Brightness;Mirror;Sharpness;Anti-Banding, Frame Rate: TVI: 1080p@25fps/30fps, CVI: 1080p@25fps/30fps, AHD: 1080p@25fps/30fps, CVBS: PAL/NTSC, Image Enhancement: DWDR;BLC;HLC;Global, White Balance: Auto/Manual, White Light: Auto/Off, Specialty - High quality imaging with 2 MP, 1920 x 1080 resolution. 3D DNR technology delivers clean and sharp images. Up to 20 m white light distance for bright night imaging. One port for four switchable signals (TVI/AHD/CVI/CVBS)., Warranty - 1 Year, Country of Origin - China, Made in/ Assemble - China

Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System PAL/NTSC
Light Alarm Solid Light Alarm (White Light)
Lens Type 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV

2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

Lens Mount M12
Supplement Light Range Up to 20 m
Smart Supplement Light Yes
Supplement Light Type White Light
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings Brightness, Mirror, Sharpness, Anti-Banding, AGC
Frame Rate

TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC

Day/Night Mode Color
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR, BLC, HLC, Global
Noise Reduction 3D DNR/2D DNR
White Balance Auto/Manual
Video Output Switchable TVI/AHD/CVI/CVBS
Material Metal
Dimension Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05")
Weight Approx. 320 g (0.71 lb)
Operating Condition -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Communication

HIKVISION-C

Language English
Power

12 VDC ± 25%, Max. 2.4 W

*You are recommended to use one power adapter to supply the power for one camera.

Protection IP67
