Security Surveillance Hikvision DS-7208HGHI-F1/NB 8-ch 1080p Lite 1U H.264 Balun DVR

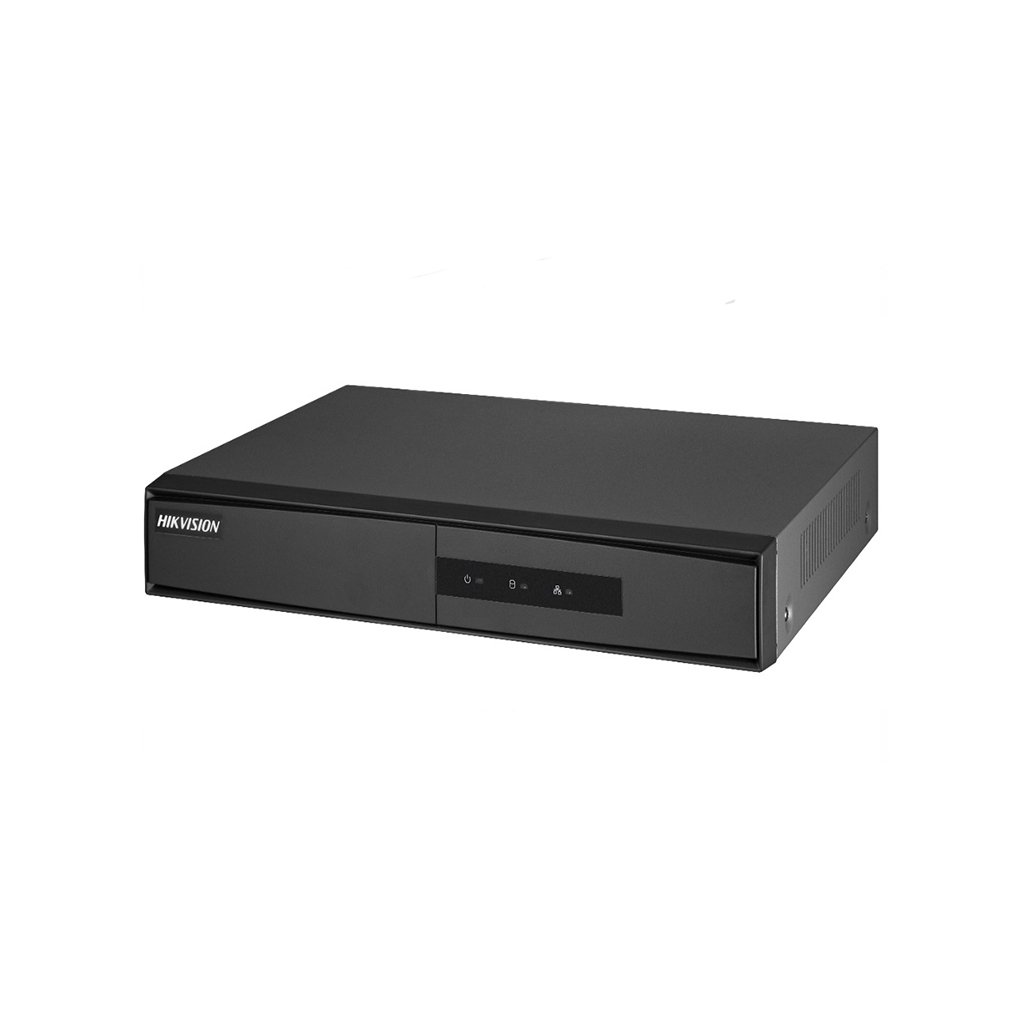

Hikvision DS-7208HGHI-F1/NB 8-ch 1080p Lite 1U H.264 Balun DVR

Price	0 ৳
Status	In stock
Product Code	PR00202
Brand	HIKVISION
Model	DS-7208HGHI-F1/NB

Features

8 channels and 1 HDD 1U DVR
Built-in balun: video can be transported via twisted-pair
H.264+ / H.264 video compression
Encoding ability up to 1080p lite @ 12 fps

Hotline: 01979234344 | Corporate: 01979234319

Download Brochure

Share On :

Description

Last Modified On: 16-08-2023

Hikvision DS-7208HGHI-F1/NB 8-ch 1080p Lite 1U H.264 Balun DVR

Compression and Recording

H.264 + video compression improves encoding efficiency and reduces data storage costs
Full channel recording at up to 1080p lite resolution

Storage and Playback

1 SATA interface (up to 6 TB capacity per HDD)
Smart search for efficient playback

Smart Function

Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
VQD (Video Quality Diagnostics)

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Output bandwidth limit configurable

Best 8 CH HD DVR

Hikvision DVR-100G-F1
Hikvision DS-7108HGHI-F1/N
Hikvision DS-7208HGHI-F2
Hikvision DS-7208HGHI-F1/NB

Digi-Mark Solution authorized dealer of Hikvision in Bangladesh. You can buy the Hikvision DS-7208HGHI-F1/NB DVR in bd from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

General Informations

Technical Specification
Model																		DS-7208HGHI-F1/NB
Recording
Video compression																		H.264+/H.264
Encoding resolution																		When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Video bit rate																		32 Kbps to 4 Mbps
Dual stream																		Support
Stream type																		Video, Video & Audio
Audio compression																		G.711u
Audio bit rate																		64 Kbps
Video and Audio
IP video input																		Up to 960p resolution
Analog video input																		Balun interface, supporting coaxitron connection
Turbo HD input																		1080p25, 1080p30, 720p25, 720p30
AHD input																		1080p25, 1080p30, 720p25, 720p30
HDCVI input																		1080p25, 1080p30, 720p25, 720p30
HDMI/VGA output																		1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input																		1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio																		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback																		8-ch
General
Power supply																		12 VDC
Consumption (without HDD)																		≤ 12 W
Working temperature																		-10 °C to 55 °C (14 °F to 131 °F)
Working humidity																		10% to 90%
Dimensions (W × D × H)																		260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD)																		≤ 1 kg (2.2 lb)
