Networking Components B&Ton BT-6005GS 4port POE Fiber Switch

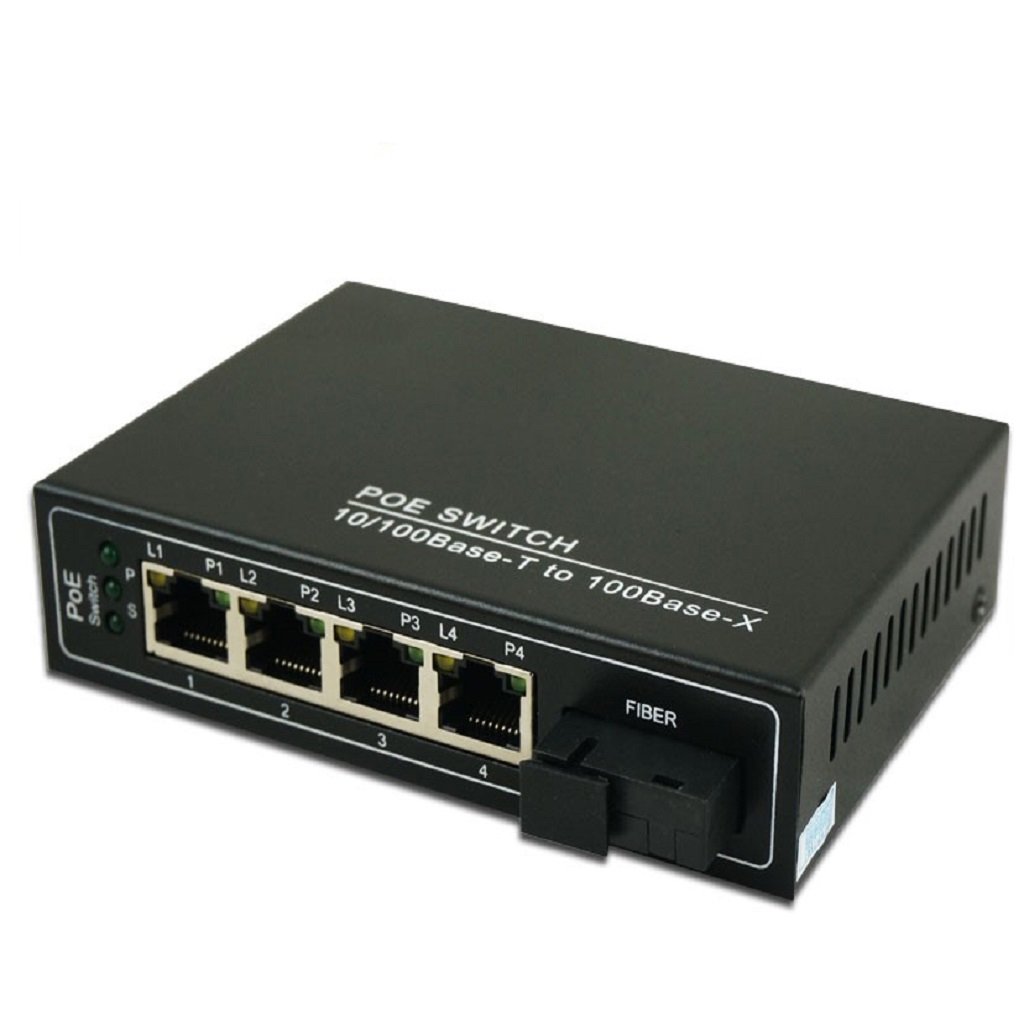

B&Ton BT-6005GS 4port POE Fiber Switch
B&Ton BT-6005GS 4port POE Fiber Switch

B&Ton BT-6005GS 4port POE Fiber Switch

not inserted
Price 0
Status Call For Price
Product Code PR01057
Brand B&TON
Model BT-6005GS
Features

    • 5x 10/100Mbps Ports with Auto Uplink
    • Supports PoE power up to 65W/110W for all PoE ports
    • Supports PoE IEEE 802.3af/at compliant PDs
    • Supports IEEE 802.3x flow control

Hotline: 01979234344 | Corporate: 01979234319
No Brochure
Share On :
Last Modified On: 13-07-2024

B&Ton BT-6005GS 4port POE Fiber Switch

Find B&Ton BT-6005GS 4port POE Fiber Switch price in bd Which, is your budget-friendly. Find the latest Fiber Switch at the best price from our website digimarkbd.com Order Online for nationwide cash on delivery or visit our Shop.

B&Ton 4port POE Fiber Switch. BT-P401E-af/at POE Fiber Switch 4POE+1Fiber Port and 5 Port Switch with 4 AF/AT PoE Ports and 1 Up-link. Bandwidth: 1.6Gbps. PoE Line: End-Span(12+,36-). PoE STD: IEEE802.3af(15.4W),IEEE802.3at(25.5W). Adapter: 65W(52V/1.25A),Adpater:110W(52V/2.15A)

  • IEEE 802.3af/at power on up to 4 ports
  • Supply power to wireless access points and surveillance cameras over Cat-5/6 cabling
  • 5x 10/100Mbps Ports with Auto Uplink™
  • Supports PoE power up to 15.4W/25.5W for each PoE port
  • Supports PoE power up to 65W/110W for all PoE ports
  • Supports PoE IEEE 802.3af/at compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity, and speed
  • External power adapter supply

Flexible

Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af/at IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af/at-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.

Plug and Play

The standards-based PoE Switch senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af/at compliant devices and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.

Quiet and Compact

Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.

Great Value

With data switching and Power over Ethernet integrated into one unit, the PoE Switch saves space, reduces cables, and eliminates the requirement for dedicated electrical outlets – lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.

Digi-Mark Solution authorized distributor of B&Ton BT-6005GS 4port POE Fiber Switch in Bangladesh. You can buy the B&Ton BT-6005GS 4port POE Fiber Switch at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. We have dedicated Technical engineers to assist all over Bangladesh. Total set-up and after-sale support can be ensured at the best price. To know more details please Contact Us on our Facebook Page or 01979-234344.

Model

BT-P401F-20(A/B)Af/At

Ports

4port

Bandwidth

1.6Gbps (Non-Blocking)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 Meter), 100BASE-TX: Cat5 Or More UTP (≤100 Meter)

Connector Type

4x 10/100M Copper Cable RJ45 Ports And 1x SC Port(4 PoE Ports+1 Fiber Uplink)

Address Database Size

1K

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af/At DTE Power Via MDI; IEEE 802.3af/At

LED Display

System: Power Supply; Every Port: Connecting, PoE Working Status

Working Environment

Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, Non-Condensing

PoE Feature

All Ports Support MDI/MDIX

PoE Ports

Port 1-4 Support POE

PoE Port Power

15.4W/25.5W For Each POE Port

PoE Standard

IEEE 802.3af/At

Product Size

118x85x27mm, 0.4kg

Radiation

CE Mark, Commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B

MTBF

190,000 Hours (About 21 Years)

Transmission Distance

20km

MAC Address Table

2K

Dimensions (W X D X H)

118x85x27mm

Certification

CE Mark ,Commercial; CE/LVD EN60950, RoHS

Power Supply

AC100-240V 50/60Hz;

Brand

B&Ton
