< img height="1" width="1" style="display:none" src="https://www.facebook.com/tr?id=398657075013292&ev=PageView&noscript=1" /> Hikvision DS-K1T343EFWX Value Series Face Access Terminal Price In BD
Access Control and Time Attendance Hikvision DS-K1T343EFWX Value Series Face Access Terminal
Hikvision DS-K1T343EFWX Value Series Face Access Terminal
Hikvision DS-K1T343EFWX Value Series Face Access TerminalHikvision DS-K1T343EFWX Value Series Face Access Terminal

Hikvision DS-K1T343EFWX Value Series Face Access Terminal

not inserted
Price 00
Status In stock
Product Code PR01188
Brand HIKVISION
Model DS-K1T343EFWX
Features

    • Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
    • Supports ISAPI, ISUP5.0
    • Configuration via the web client
    • Face recognition. Distance: 0.3 m to 1.5 m
    • Duration < 0.2 s/User

Hotline: 01979234344 | Corporate: 01979234319
Download Brochure
Share On :
Last Modified On: 21-09-2023

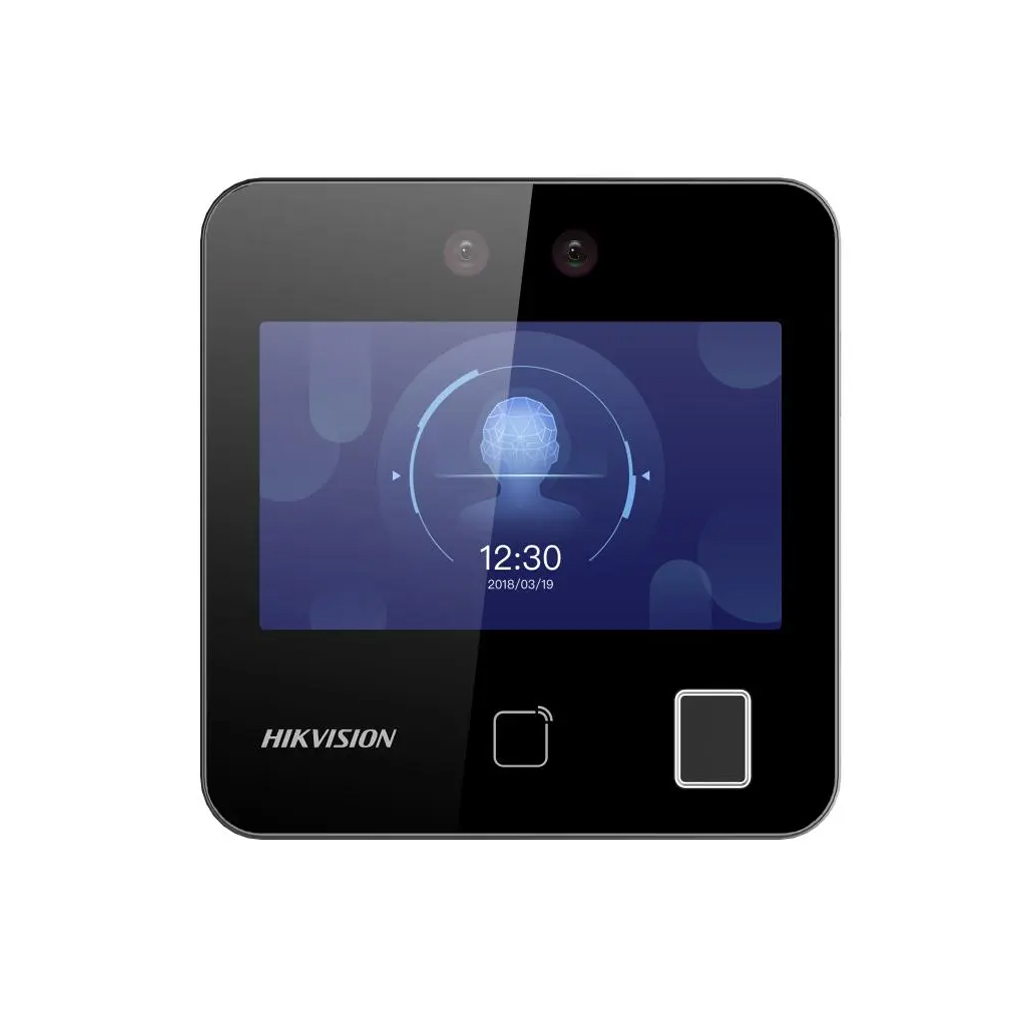

Hikvision DS-K1T343EFWX Face Access Terminal

Hikvision DS-K1T343EFWX Value Series Face Access Terminal is a cutting-edge access control and authentication device designed to provide robust security and convenience in various indoor environments. Running on the Linux operating system, this terminal boasts a sleek 4.3-inch LCD display with a resolution of 480 × 272 pixels, facilitating intuitive user interactions through its capacitive touch screen. Equipped with a 2-megapixel dual lens camera system, supporting both PAL and NTSC video standards, this terminal ensures high-quality video capture and playback. It seamlessly connects to networks with its 10 M/100 M self-adaptive wired network and Wi-Fi support, providing flexibility in deployment. Its extensive interface options include one network interface, RS-485, Wiegand, lock output, exit button, door contact input, tamper detection, and a USB port for versatile connectivity.

In terms of capacity, the DS-K1T343EFWX offers extensive storage capabilities, including a card capacity of 3,000, a face capacity of 1,500, and a fingerprint capacity of 3,000, making it suitable for installations of varying sizes. With an event capacity of 150,000, it can efficiently record access activities. The device employs EM card technology with a reading frequency of 125 KHz and impressively fast face recognition, taking less than 0.2 seconds with an accuracy rate exceeding 99%. Face recognition is effective within a range of 0.3 to 1.5 meters, and fingerprint recognition is completed in less than 1 second. In terms of power supply, the terminal operates on 12 VDC/1 A, with a power adapter included. It is designed to withstand a wide range of temperatures from -10°C to 40°C (14°F to 104°F) and can operate in humidity levels up to 90% without condensation. Its compact dimensions of 118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86") make it suitable for wall mounting or base mounting, enhancing its adaptability to various installation scenarios. The DS-K1T343EFWX supports multiple languages, including English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, and Japanese, ensuring accessibility to a global user base. It features face anti-spoofing technology, audio prompts for user guidance, and time synchronization capabilities, adding layers of security and functionality to its core access control features. With a gross weight of 0.71 kg (1.57 lbs) and a net weight of 0.23 kg (0.51 lbs), this device offers a compact and lightweight solution for efficient access management, making it an ideal choice for businesses and organizations seeking advanced access control with user-friendly features.


System Linux
Display - Dimensions: 4.3-inch
  - Resolution: 480 × 272
  - Type: LCD
  - Operation Method: Capacitive touch screen
Video - Pixel: 2 MP
  - Lens: × 2
  - Video Standard: PAL (Default) and NTSC
Network - Wired Network: 10 M/100 M self-adaptive
  - Wi-Fi Support
Interface - Network Interface: 1
  - RS-485: 1
  - Wiegand: 1
  - Lock Output: 1
  - Exit Button: 1
  - Door Contact Input: 1
  - IO Input: -
  - IO Output: -
  - TAMPER: 1
  - USB: 1
Capacity - Card Capacity: 3,000
  - Face Capacity: 1,500
  - Fingerprint Capacity: 3,000
  - Event Capacity: 150,000
Authentication - Card Type: EM card
  - Card Reading Frequency: 125 KHz
  - Face Recognition Duration: < 0.2 s
  - Face Recognition Accuracy Rate: >99%
  - Face Recognition Distance: 0.3 to 1.5 m
  - Fingerprint Recognition Duration: <1 s
General - Power Supply: 12 VDC/1 A (power adapter included)
  - Working Temperature: -10°C to 40°C (14°F to 104°F)
  - Working Humidity: 0 to 90% (No condensing)
  - Dimensions: 118.4 mm × 118.4 mm × 21.8 mm
  - Application Environment: Indoor
  - Installation: Wall Mounting; Base Mounting
  - Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
  - Weight: Gross weight: 0.71 kg (1.57 lbs); Net weight: 0.23 kg (0.51 lbs)
Function - Face Anti-Spoofing: Support
  - Audio Prompt: Support
  - Time Synchronization: Support
