< img height="1" width="1" style="display:none" src="https://www.facebook.com/tr?id=398657075013292&ev=PageView&noscript=1" /> DSPPA D7341 5G Wi-Fi Wireless Router. Ensure the privacy of your conference with WPA/WPA2 digital encryption technology.
Networking Components DSPPA D7341 5G Wi-Fi Wireless Router

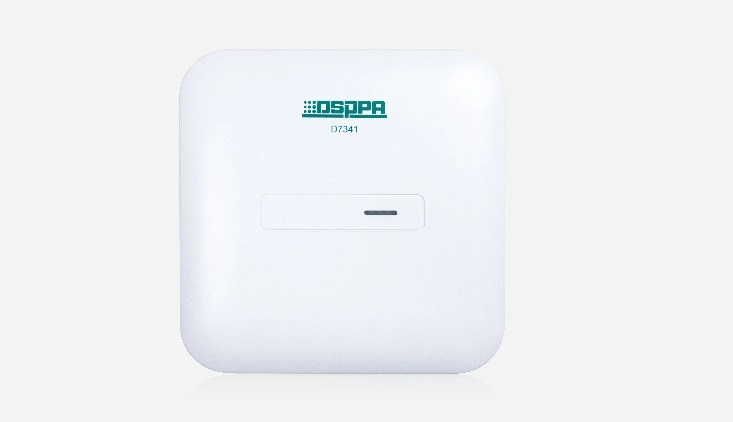

DSPPA D7341 5G Wi-Fi Wireless Router
DSPPA D7341 5G Wi-Fi Wireless RouterDSPPA D7341 5G Wi-Fi Wireless RouterDSPPA D7341 5G Wi-Fi Wireless RouterDSPPA D7341 5G Wi-Fi Wireless Router

DSPPA D7341 5G Wi-Fi Wireless Router

not inserted
Price 0
Status In stock
Product Code PR01267
Brand DSPPA
Model D7341
Features

    • portable 5g wifi router from UHF, 2.4GHz and 5GHz.
    • Connecting cable recommended using high quality cross CAT6 cable.
    • External four-antenna design makes data transmission more stable.
    • Maximum power consumption: 15W; size: 188 ×188 ×40mm.

Hotline: 01979234344 | Corporate: 01979234319
No Brochure
Share On :
Last Modified On: 26-11-2024

Ensure the privacy of your conference with WPA/WPA2 digital encryption technology, protecting against malicious interference. Compliant with IEEE802.11ac Wave-2/A/B/g/N wireless standards, our portable 5G WiFi router offers multiple frequency point selections, including UHF, 2.4GHz, and 5GHz, for optimal connectivity. Equipped with two RJ45 interfaces, one connects to the D7301 conference host and the other to the access point (AP). For reliable connections, we recommend using high-quality cross CAT6 cables. With an external four-antenna design, data transmission is stable, providing signal coverage up to 25 meters in complex environments and up to 30 meters in standard wireless audio conference settings. With a maximum power consumption of 15W and compact dimensions of 188×188×40mm, weighing just 0.5kg, our WiFi router offers efficient performance in a sleek design.

Model D7341
Wired interface 10/100/1000Mbps  LAN*2
Wireless bandwidth 1200Mbps
Operating band

2.4G: 2400Mhz ~ 2483Mhz

5.8G: 5100Mhz ~ 5900Mhz



Wireless standards IEEE802.11ac wave-2 /a/b/g/n
Modulation method OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Transmit power

11n 2.4G  25dBm (adjustable)

11n 5G  23dBm (adjustable)

11ac 2.4G  23dBm (adjustable)

11ac 5G  22dBm (adjustable)

Antenna gain 5dBi 2*2
Working temperature: -10 to 50℃
Storage temperature -40 to 70℃
Humidity (non-concentrated) ≤90% (non-condensing)
Power solution 48V PoE Power over Ethernet (IEEE802.3af/at)
Power consumption ≤ 15W
Installation method Ceiling mounted
